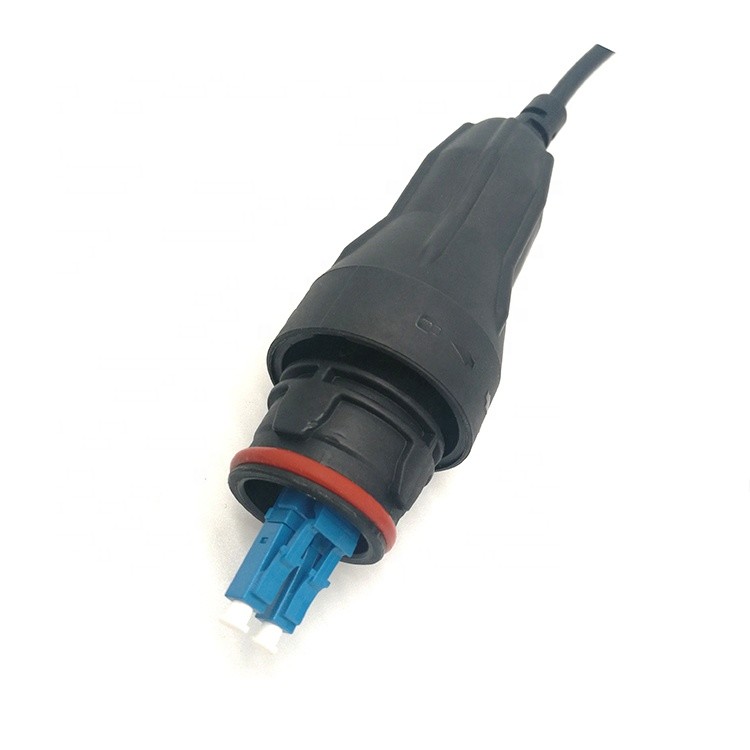

IP67 Outdoor Rugged Cable Assembly Harsh Environment Connectors Fullaxs Sealing

Name: IP67 Outdoor Rugged Cable Assembly Harsh Environment Connectors Fullaxs Sealing
Brand: UNIFIBER-OEM
Price: 1 USD

Brand Name : UNIFIBER-OEM

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Cable diameter : 4.8/7.0mm

Cable jacket : LSZH,PE,TPU,UV resistance

Cable length : 1/3/5/10m Or Customized

Contact Now

Fullaxs sealing connector & rugged cable assembly,Harsh environment connectors

FullAXS is a IP67 rated outdoor connector to have protection LC duplex, MPO/MTP, SC connectors from dust and water for remote radio units and FTTA connectivity. The design of the housing and boot eases installation constraints and can be easily accessed to SFP. all the connectors are factory terminated and tested

Features:

–IP67 rated for water and dust protection, corrosion resistance

–LC duplex, MPO/MTP, SC and others can be accommodated

–Factory terminated , no tools required

–Designed for harsh environment application

–Customized cable length, and fiber type

–UPC or APC endface polish, singlemode or multimode for option

–Robust bayonet lock system for easy, fast, secure mating

–Open bulkhead for easy access to SFP

Application

–Remote Radio Head(RRH)

–Aerospace and Defense

–Outdoor Telecommunication

–LTE base station

PARAMETERS

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥60dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃
