Reinforced Mini SC/APC Fiber Optic Connectors Outdoor Waterproof Field Installable

Name: Reinforced Mini SCAPC Fiber Optic Connectors Outdoor Waterproof Field Installable
Brand: UNIFIBER or OEM
Price: 1 USD

China Reinforced Mini SC/APC Fiber Optic Connectors Outdoor Waterproof Field Installable wholesale

Brand Name : UNIFIBER or OEM

Model Number : MINI SC

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000pcs/day

Delivery Time : 5-8days

Packaging Details : PE bag

Connector : mini SC

Compatiable : Corning OptiTap™ or HuaWei mini SC

Waterproof grade : IP67

Cable type : 3.0mm/5.0mm/flat 2.0*3.0mm

Fiber type : G652D/G657A

Cable Jacket : LSZH

Contact Now

Outdoor waterproof field installable reinforced mini SC/APC fast connector corning OptiTap™ compatible

UNIFIBER outdoor filed installable Reinforced SC connector is factory -terminated, environmentally sealed and hardened connector toreduce the cost and the time of drop cable deployment in optical access networks. The outdoor field installable reinforced connector is mainly used in outdoor connection of the optical transmitter, they are widely used in data transmission network.

Features:

Designed to reduce the cost and time of drop fiber deployment in the network

Faster network roll out and customer installations
100% tested assemblies built in a controlled environment
Lower cost deployment by utilizing plug and play solutions

Flexibility and reliability provides fast and simple deployments within a network

Environmentally protected while maintaining superior durability and reliability for use in the connection to the subscriber

Available in multiple fiber lengths to meet all your FTTX design drop deployment

Application:

Fiber to the home (FTTH) connectivity

Outdoor FTTA solutions

Optical access networks

ITEM	Technical Parameters
Applicable for	Drop cable / Indoor cable
Applicable for	0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter	SM(9/125), MM(50/125, 62.5/125)
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	> 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+75°C
On-line tensile strength (20 N)	IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times)	IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)	IL ≤ 0.5dB RL ≤ 5dB

Reinforced Mini SC/APC Fiber Optic Connectors Outdoor Waterproof Field Installable

Product Tags:

quick connect fiber optic connectors

industrial fiber optic connectors

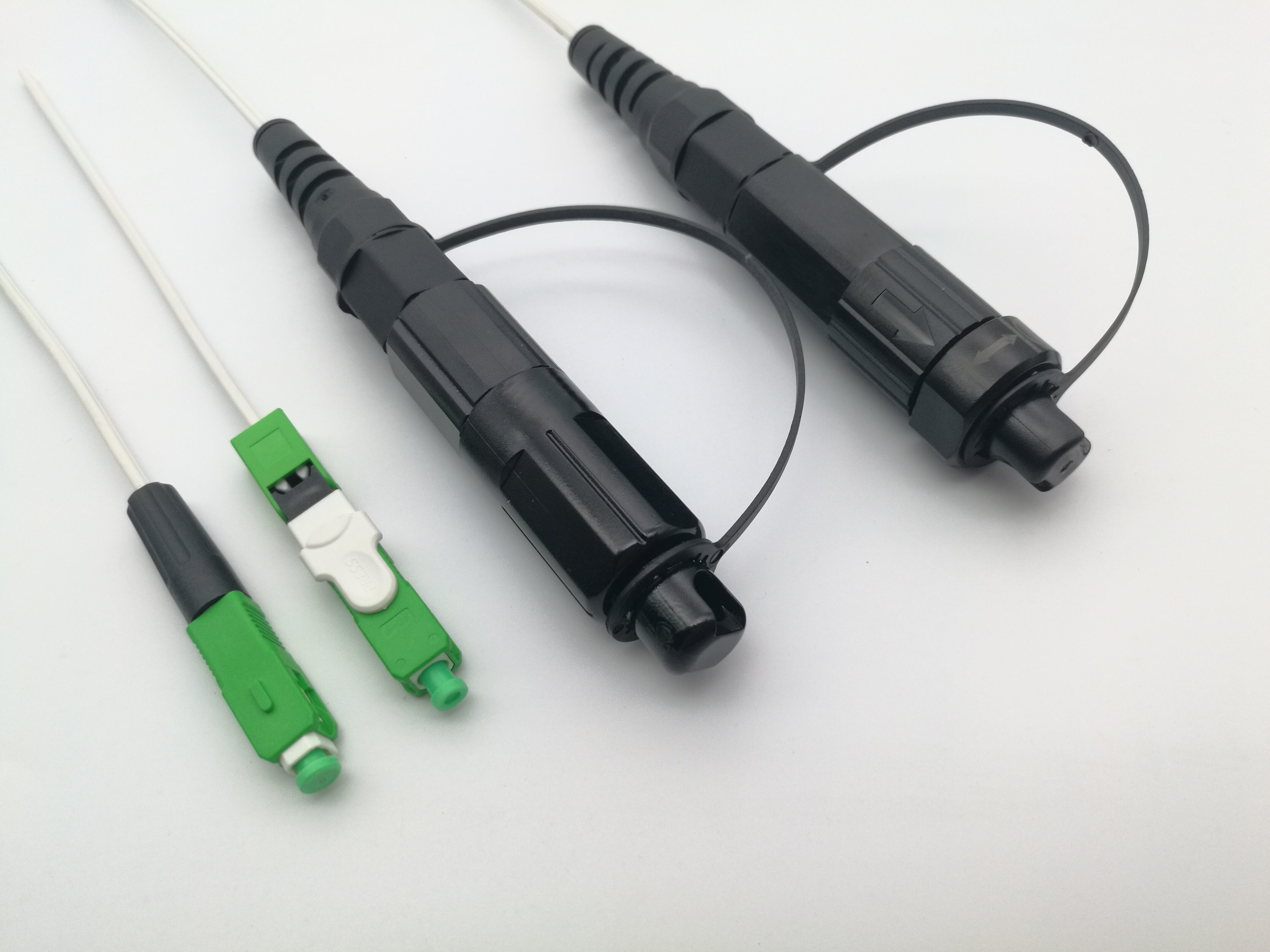

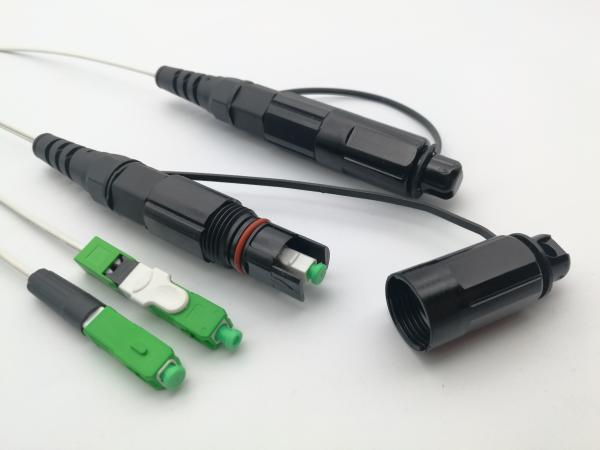

Reinforced Mini SC/APC Fiber Optic Connectors Outdoor Waterproof Field Installable Images
