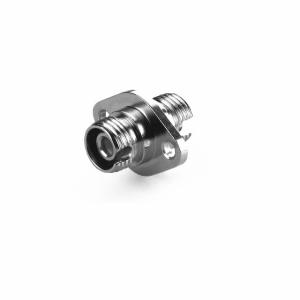

Oval Flange FC Metal 1550nm Fiber Optic Adapter

Name: Oval Flange FC Metal 1550nm Fiber Optic Adapter
Brand: UNIFIBER
Price: 1 USD

China Oval Flange FC Metal 1550nm Fiber Optic Adapter wholesale

Brand Name : UNIFIBER

Model Number : FC Oval Flange

Certification : ROHS

Place of Origin : CHINA

MOQ : 50

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000pcs/day

Delivery Time : 3~5 business days

Packaging Details : Blister Case

Material : Metal

Sharpe : Oval Flange

Fiber : Singlemode Or Multimode

Polish : UPC or APC

Sleeves : Ceramic

Application : Patch panels and adapter plates.

Contact Now

FC Metal Adapter with Oval Flange for Patch panels and adapter plates, Single-mode or Multimode, UPC or APC optional

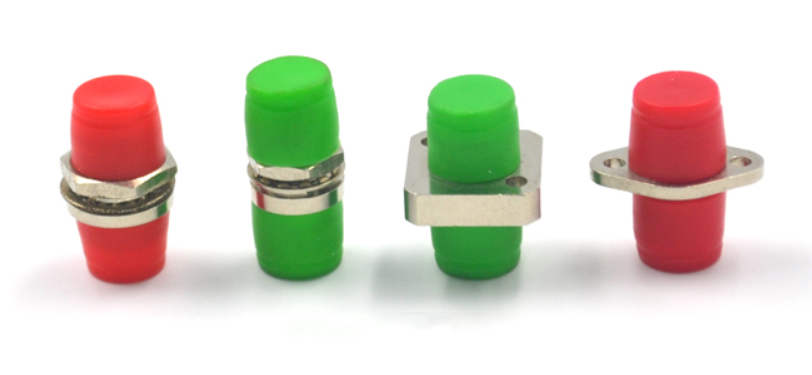

UNIFIBER offers a variety of high quality FC Adapters, also known as FC Mating Sleeves. These are bulkhead adapters that mount into patch panels and adapter plates.we can do oval type adapter, Big D Fiber Adapter,Small D fiber Adapter,and square fiber adapters ,Singlemode and multimode ,UPC and APC all is available. These FC Fiber Optic mating sleeves have phos. Bronze or zirconia sleeves for customer choose .Our FC oval type adapter widely used in patch panel,fiber adapter plate,ODF, Wall mounted terminal box and so on .

Features:
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Both eramic and Bronze Sleeve are available
PC,APC,UPC optional
Simplex / Duplex
Housing: metal

Application:
Local Area Network
CATV System
Telecommunication Networks
Equipment Test Specification

Parameter	Specifications
Mating Connector Type	SC,LC,FC,ST,MU,D4,DIN,E2000,SMA
Fiber Type of Connector	Single Mode	Multimode
Adapter Color	Blue,green,metallic	Begie,Metallic
Testing Wavelength	1310nm,1550nm	850nm,1300nm
Insert Loss	Typecal≤0.15dB,max≤0.2dB	Typecal≤0.15dB,max≤0.2dB
Repeatability	≤0.10dB
Exchangeability	≤0.20dB
Durability	1000Mating ,max≤0.20dB
Housing Material	Plastic or metal
Operating Temperature	-20°C～+70°C
Storage Temperature	-40°C～+85°C
Alignment Sleeve	Ceramic (ZrO2) or customized
Channel Number	Simplex,duplex,quad .

Oval Flange FC Metal 1550nm Fiber Optic Adapter

Product Tags:

UPC APC fiber optic cable adapter

ceramic sleeves fiber optic network adapter

Oval Flange FC Metal 1550nm Fiber Optic Adapter Images
