Horizontal 144 Core Fiber Optic Splice Cases 2 In 2 Out

Name: Horizontal 144 Core Fiber Optic Splice Cases 2 In 2 Out
Brand: UNIFIBER
Price: 1 USD

China Horizontal 144 Core Fiber Optic Splice Cases 2 In 2 Out wholesale

Brand Name : UNIFIBER

Model Number : GPJ09-6809-A

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/day

Delivery Time : 5-8days

Packaging Details : Carton box

Product : Horizontal 144 Core 2 in Fiber Optic Splice Cases With Fast Connectors

Style : Inline/Horizontal

Material : PP+GF

Capacity : 144

Ports : 2 Inlets, 2 Outlets

Tray Capacity : 24/48

Sealing Type : Mechanical Seal

Installation : Wall Mounting/Aerial/Duct Mounting/Direct Burial

Contact Now

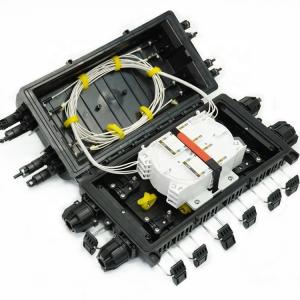

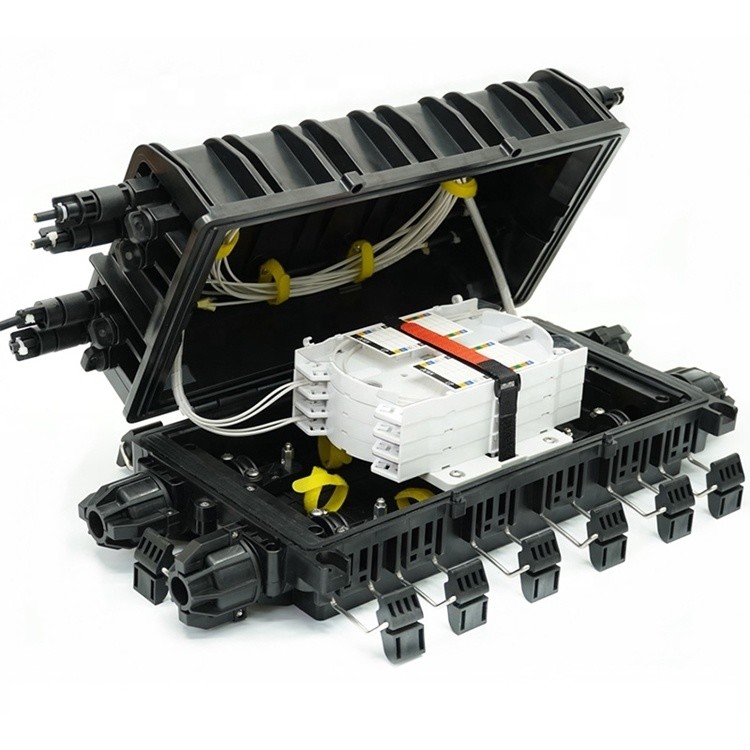

Horizontal 144 Core 2 in 2 Out Fiber Optic Splice Cases With Fast Connectors

GPJ09-6809-A inline closure is a versatile connection equipment with fast connectors, applicable to the fiber splicing, storage, distribution, and splitting, and can be employed for FTTH solutions. This horizontal enclosure featuring 2 inlets and 2 outlets are applicable to φ9-11 mm cables, and 16 pcs φ4-6 mm round cables or figure 8 cables.

Features

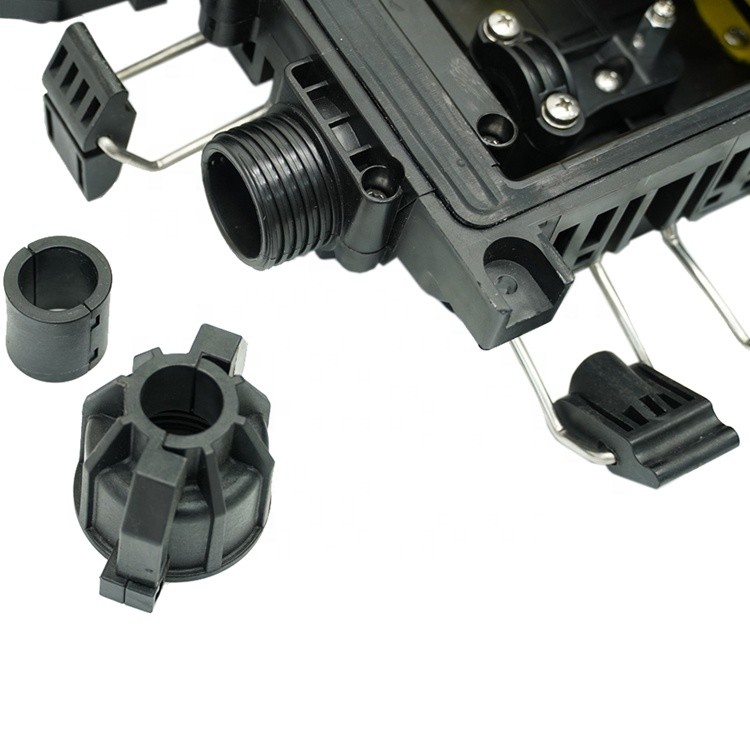

● Ports: 2 inlets, 2 outlets, Ф9-11 mm

● Capacity: 144

● Seal: Mechanical

● Waterproof: IP68

● Connector: Fast connector

● Material: PP+GF

● Applications: wall mounting, aerial, duct mounting, direct burial

Specification

Model No.	GPJ09-6809-A
Style	Inline/Horizontal
Dimensions (L×W×H)	510×230×150 mm
Material	Polymer Modified Plastics
Sealing Type	Mechanical Seal
Protection Grade	IP68
Cable Ports	Inlet	2	Φ9-11 mm 16 pcs φ4-6mm drop/bow-type cables
	Outlet	2
Fiber Splice Capacity	Min 24, Max 144
Tray Capacity	24/48
Tray Count	3
Connector	Fast Connector
Weight	3.5 - 4.0 kg
Application	Wall Mounting/ Aerial/ Duct Mounting/ Direct Burial
Packing Type	Inner Carton		625×245×175 mm (1 PCS)
	Outer Carton		645×520×380 mm (6 PCS)
