CATV FC LC Duplex Fiber Patch Panel 4 Removable Adapter Plate

  • 1
  • 2
  • 3

Brand Name : UNIFIBER

Model Number : Wall Mount Fiber Patch Panel

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 5-7 days

Packaging Details : carton box

Product : Wall Mount Fiber Patch Panel

No of ports : 12/24/48 ports

Connectors : SC/FC/LC/ST

Material : cold roll steel

Color : Light Gray

Installation : Wall Mounting

Contact Now

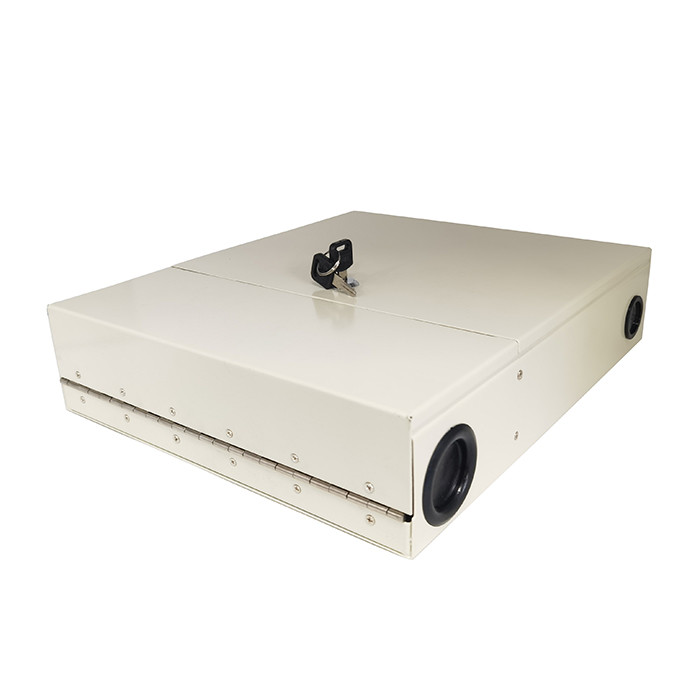

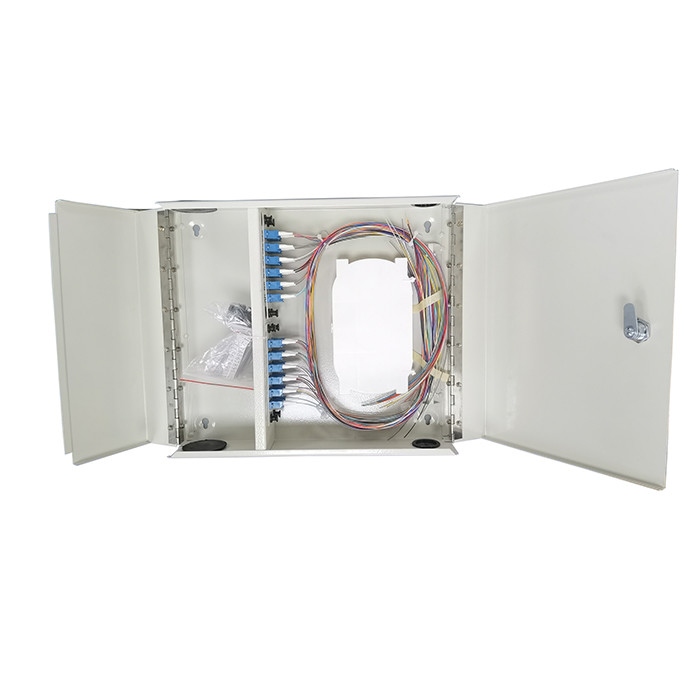

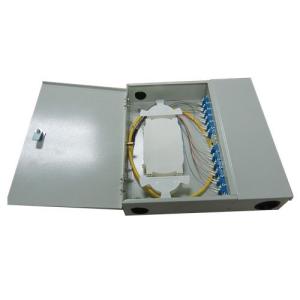

This indoor 24/48 Port Wall Mount Fiber Patch Panel made by high quality cold rolled steel, it can manage both single fiber and ribbon & bundle fiber cables,can load with SC,LC,FC or ST connectors, there are 4 removable adapter plate, with large working space. Customer can choose empty enclosure box or asked to fully loaded with adapter and pigtails.

Features

With cold-roll steel box, splicing unit, distribution unit and panel

Various panel plate to fit different adapter interface

Adapters can be installed: FC, SC, ST, LC

Suitable for single fiber and ribbon & bundle fiber cables

Special design ensures the excess fiber cords and pigtails in good order

No interval and easy for management and operation

Application:

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/ WAN/CATV

Type Size(mm) H*W*D Max capacity Outer carton dimension Outer cartion weight
GP(05)A-24 455*405*80 24 500*450*490/4pcs 29.5
GP(05)A-48 455*405*120 48 500*450*490/3pcs 25.3
GP(05)A-72 455*405*150 72 500*450*390/2pcs 19.5
GP(05)B-48 455*405*120 48 500*450*490/3pcs 27
GP(05)B-72 455*405*150 72 500*450*390/2pcs 20.5
GP(05)A-24A 350*350*80 24 405*405*605/5pcs 20.8
GP(05)B-24B 455*405*80 24 500*450*490/4pcs 29
GP(05)C 350*300*80 12 405*355*605/5pcs 19.5
GP(05)D 350*300*80 24 405*355*605/5pcs 19.5
