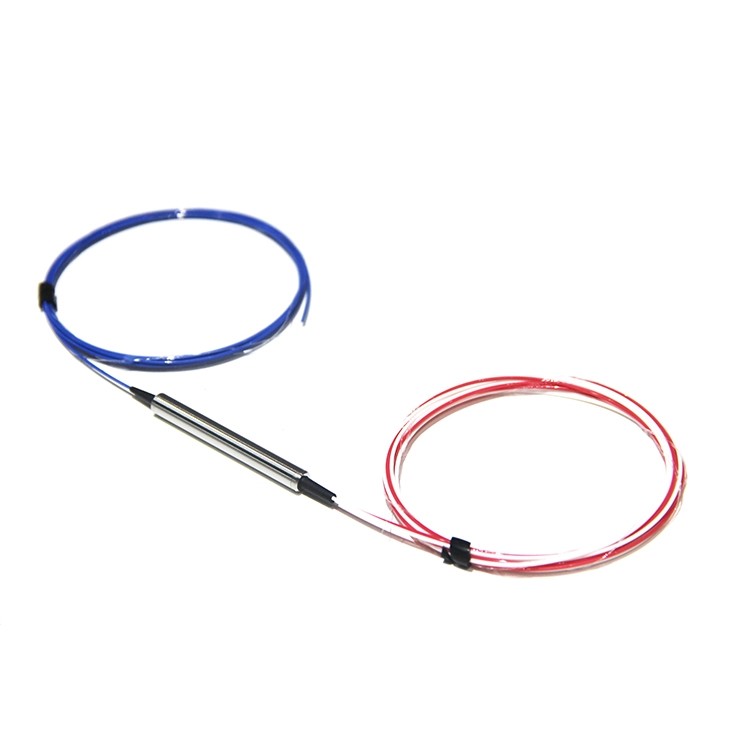

ROHS 1550nm Fiber Optical Circulator 3 Port Polarization Maintaining

Name: ROHS 1550nm Fiber Optical Circulator 3 Port Polarization Maintaining
Brand: UNIFIBER or OEM
Price: 1 USD

China ROHS 1550nm Fiber Optical Circulator 3 Port Polarization Maintaining wholesale

Brand Name : UNIFIBER or OEM

Model Number : 3 Port Polarization Maintaining Optical Circulator

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3-5days

Packaging Details : Blister case

Product : 3 Port Polarization Maintaining Optical Circulator

Ports : 3 Ports or 4 Ports

Wavelength : 1310 or 1550nm

Fiber Type : PM Panda Fiber

Output Fiber : 250um or 900nm loose tube

Connector : None

Contact Now

Polarization Maintaining optical circulator is a micro-optic device built with PM fiber. 3 Port PM Circulator transmits a signal from port1 to port2 and transmits another signal from port2 to port3. 4 ports Polarization Maintaining optical circulator transmits the incoming signal from port1 to port2, from port2 to port3, from port3 to port4 while maintaining the polarization of the signal.It is characterized with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. It is widely used in fiber amplifier systems, fiber lasers and optical fiber sensors.

ROHS 1550nm Fiber Optical Circulator 3 Port Polarization Maintaining

Polarization Maintaining Optical Circulator
Parameter	Unit	Value
Type		Type A	Type B	Type A	Type B
Operating Wavelength	nm	1310 or 1550		1064
Bandwidth	nm	±30	±20	±5	±5
Typ. Isolation	dB	46	20	52	30
Isolation	dB	≥40	≥30	≥45	≥25
Typ. Insertion Loss	dB	0.7	0.6	3.4	1.8
Insertion Loss	dB	≤0.9	≤0.8	≤4.0	≤2.1
Extinction Ratio	dB	≥22	≥20	≥20	≥20
Cross Talk	dB	≥50
Return Loss	dB	≥50
Power Handling	mW	≤300
Fiber Type		PM Panda Fiber
Fiber Length	m	0.8
Operating Temperature	°C	-5 to +70
Storage Temperature	°C	-40 to +85
Dimensions	mm	φ5.5 × L35

Note: For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis
