G657A2 E2000 APC Fiber Optic Pigtail LSZH Jacket Spring Loaded Shutter

Name: G657A2 E2000 APC Fiber Optic Pigtail LSZH Jacket Spring Loaded Shutter
Brand: Unifiber or OEM
Price: 1 USD

China G657A2 E2000 APC Fiber Optic Pigtail LSZH Jacket Spring Loaded Shutter wholesale

Brand Name : Unifiber or OEM

Model Number : E2000/APC fiber optic pigtail

Certification : ROHS

Place of Origin : China

MOQ : 100

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000pcs/day

Delivery Time : 3~5 days

Packaging Details : PE bag

Product : E2000/APC fiber optic pigtail

Connector : E2000/APC

Fiber : G657A2

Diameter : 0.9/2.0/3.0mm

Jacket : LSZH or PVC

Length : 1M or 1.5M

Contact Now

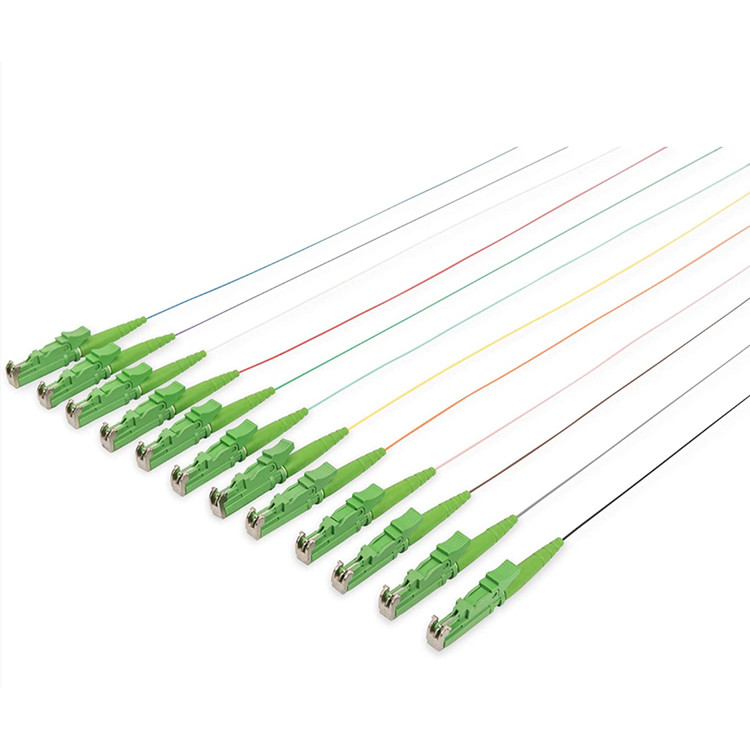

G657A2 E2000 APC Fiber Optic Pigtail Spring Loaded Shutter

e2000 fiber optic pigtail includes e2000 single mode or multimode fiber optic pigtail with 9/125um,50/125um,62.5/125um indoor fiber optic cable. that is OS1,OM1,OM2,OM3 even OM4 fiber optic cable.the usual polishing type is pc,upc and apc for the e2000 fiber optic pigtail.

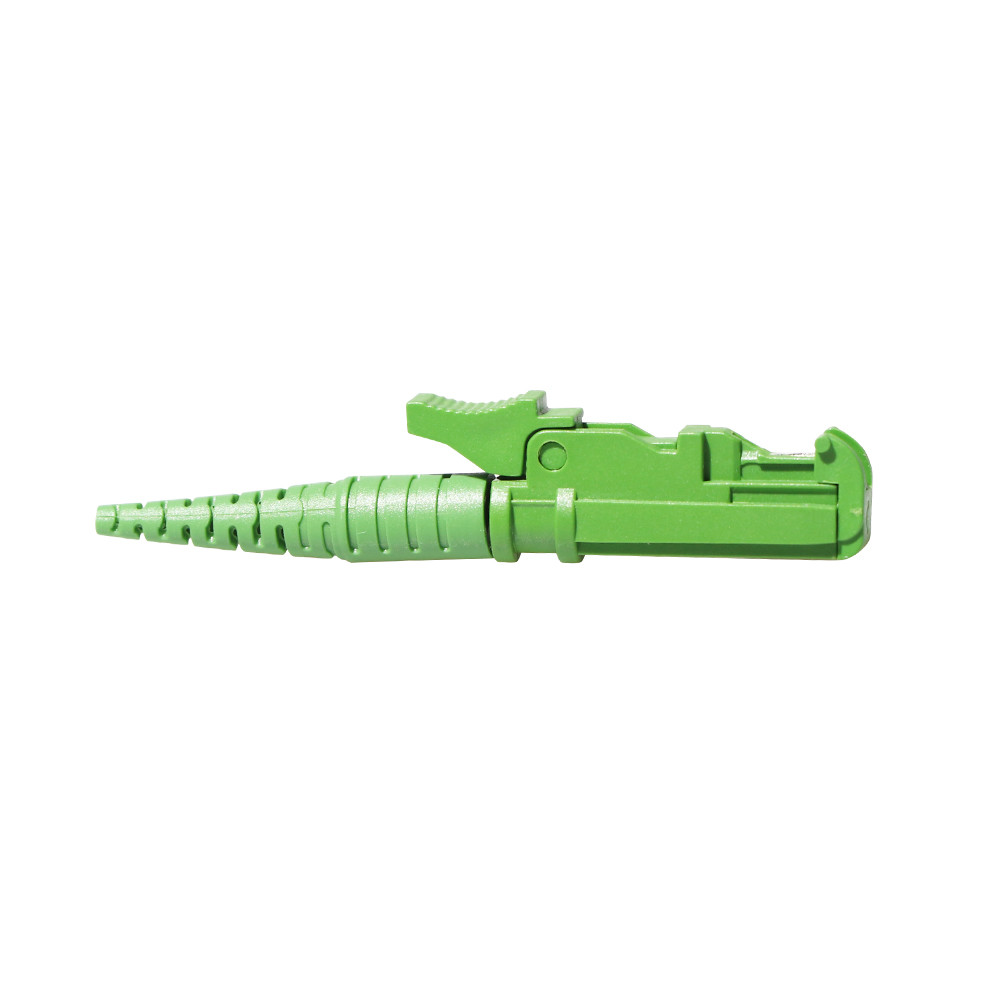

E2000 Single mode Multimode Fiber Optic Pigtails are widely used as its good performance.E2000 optic pigtail features a spring-loaded shutter used to protect the ferrule from dust and E2000 ratches. we supplies possibly the highest quality E2000 optic pigtails available.which address the highest of specifications encountered in the telecommunications market.

Application:

1. E2000 fiber optic pigtail applications
2. WANs, LANs, CATV
3. Metrology, Railway, Industry

Performance

Item	SM(Single Mode)			MM(Multimode)
Fiber Cable Type	G652D,G657A			OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125			62.5/125	50/125
Cable OD (mm)	0.9/1.6/1.8/2.0/2.4/3.0
Endface Type	PC	UPC	APC	UPC	UPC
Typical Insertion Loss (dB)	<0.2	<0.15	<0.2	<0.1	<0.1
Return Loss (dB)	>45	>50	>60	/
Insert-pull Test (dB)	<0.2		<0.3	<0.15
Interchangeability (dB)	<0.1		<0.15	<0.1
Anti-tensile Force (N)	>70
Temperature Range (℃)	-40~+80

G657A2 E2000 APC Fiber Optic Pigtail LSZH Jacket Spring Loaded Shutter
