1x2 1310/1550nm Fiber Optic Splitter Module 3.0mm Round Cable Elite MPO/APC Male

Name: 1x2 13101550nm Fiber Optic Splitter Module 30mm Round Cable Elite MPOAPC Male
Brand: Unifiber or OEM
Price: 1 USD

China 1x2 1310/1550nm Fiber Optic Splitter Module 3.0mm Round Cable Elite MPO/APC Male wholesale

Brand Name : Unifiber or OEM

Model Number : MPO Splitter Module

Certification : ROHS

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500pcs/day

Delivery Time : 3~5 days

Packaging Details : Carton box

Product : Fiber Optic Splitter Module

Connector : Elite MPO/APC(Male)

Splitting ratio : 50/50

Wavelength : 1310/1550nm

No of splitters : 4pcs of 1x2

Package : 80x60x12mm ABS box

Contact Now

Description of MPO Fiber Optic Splitter Module

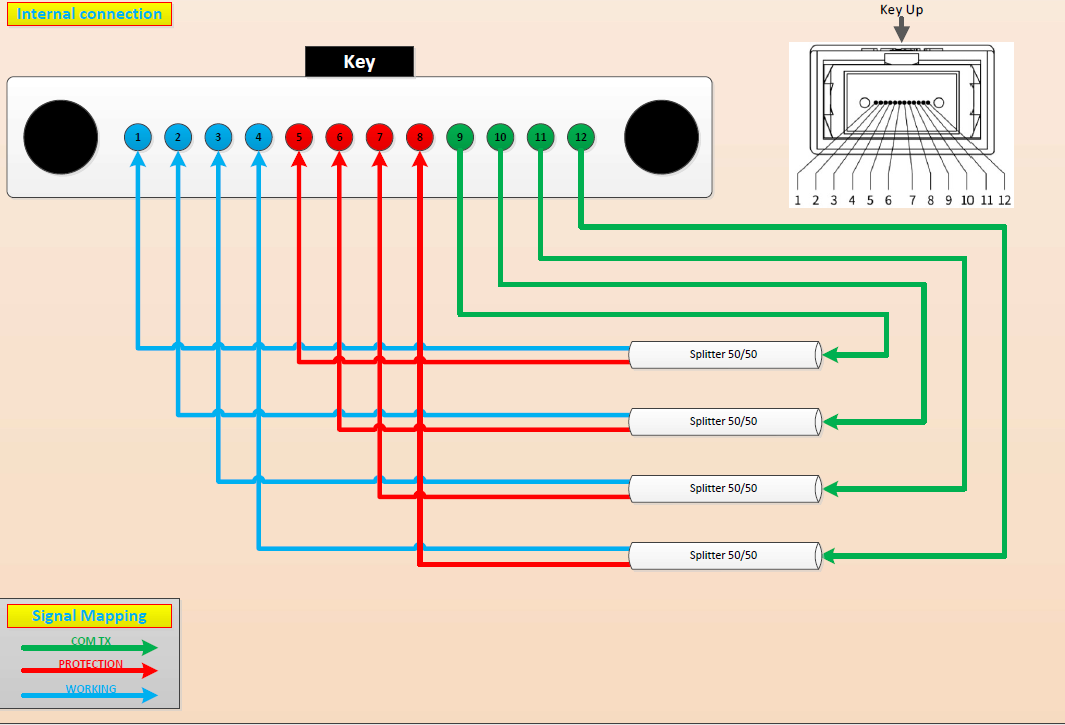

This module packed with 4pcs of 50/50 splitting ratio 1x2 FBT coupler in 80x60x12mm ABS box,it works with1310/1550nm,with 0.5m 3.0mm round cable, Elite MPO/APC(Male).

Application:

FTTH network

Passive optical network (PON)

Optical fiber CATV

Optical fiber communication system

Optical fiber testing equipment

Optical fiber sensors

Local area network (LAN)

Features:.

Low insertion loss

Low polarization dependent loss (PDL)

Good directivity

High temperature stability

Specification:

Parameters	Specifications	Unit
Operating Wavelength	1310 ±40 and 1550±40	nm
Splitting Ratio	50/50	/
Insertion Loss1	≤4.3	dB
Polarization Dependent Loss	<0.15	dB
Directivity	>55	dB
Return Loss	>45	dB
Operating Temperature	-10~+70	℃
Storage Temperature	-40~+85	℃
Operating Relative Humidity	5~95	%
Storage Relative Humidity	5~100	%
Pigtail type	3.0mm round cable
Fiber Length	0.5(±0.05)	m
Connector	12 Core Elite MPO/APC(M)	/
Package size	80x60x12	mm

1x2 1310/1550nm Fiber Optic Splitter Module 3.0mm Round Cable Elite MPO/APC Male

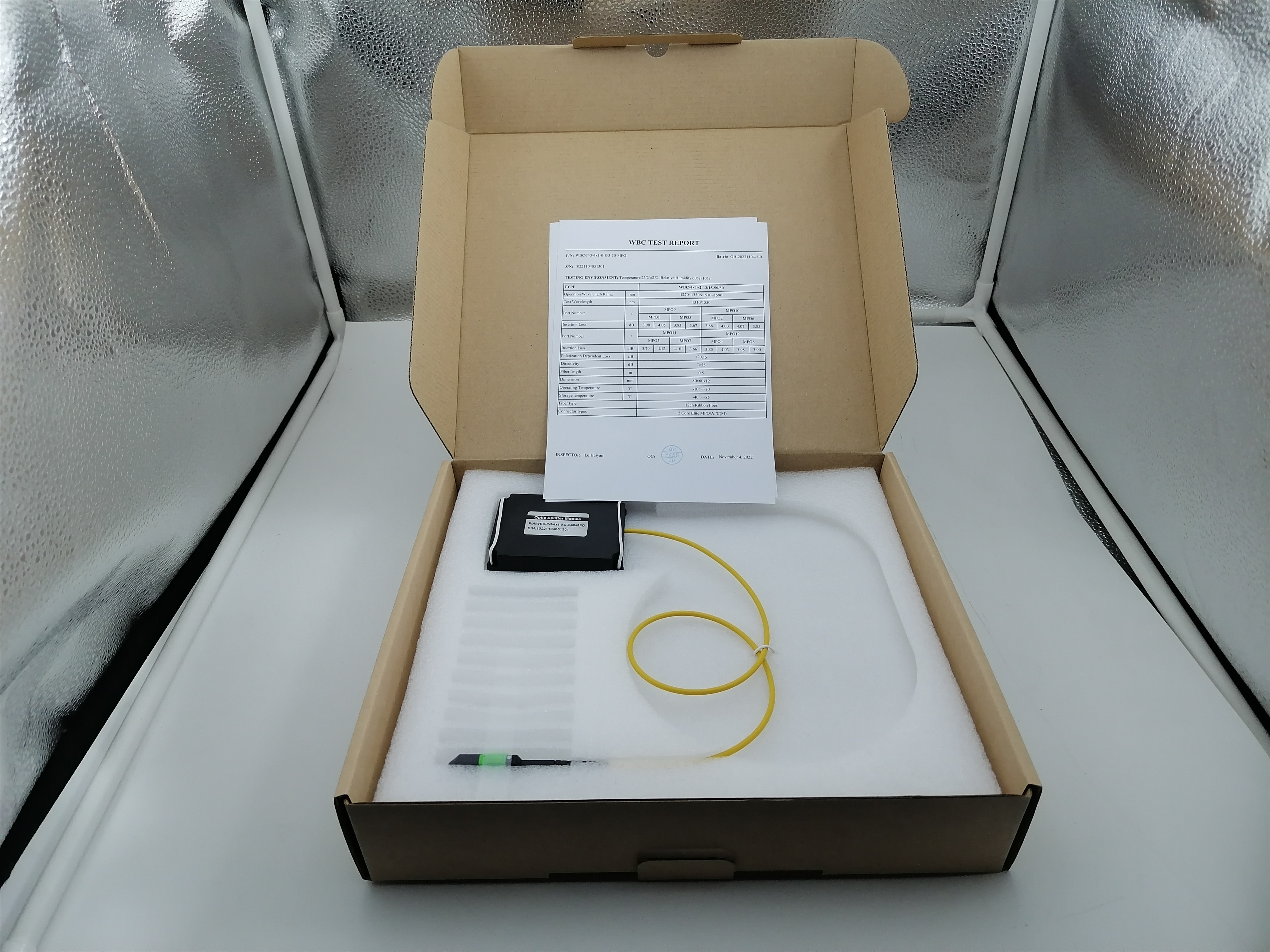

Picture of MPO Fiber Optic Splitter Module

1x2 1310/1550nm Fiber Optic Splitter Module 3.0mm Round Cable Elite MPO/APC Male
